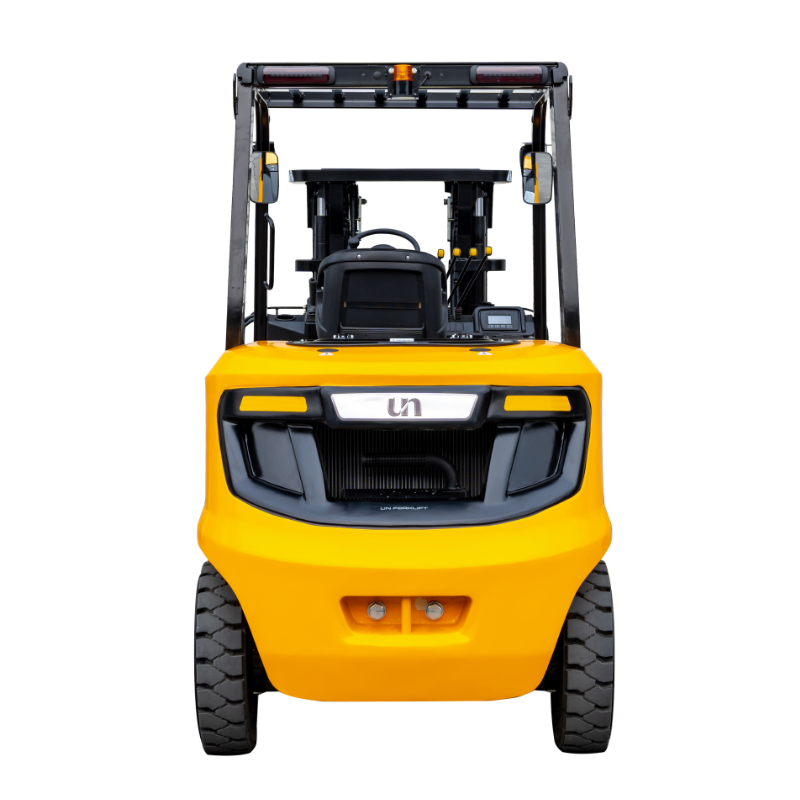

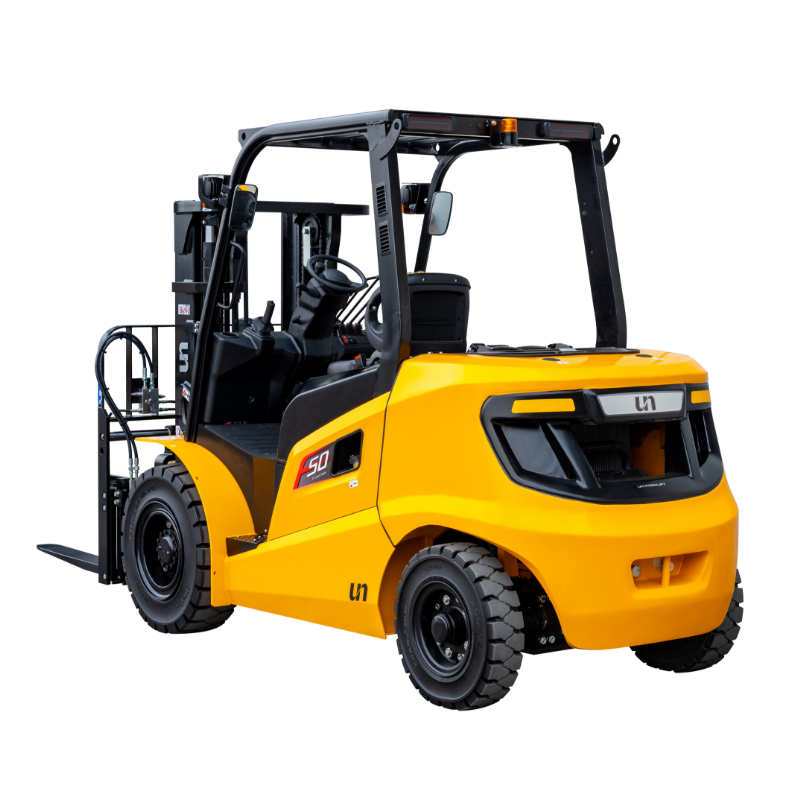

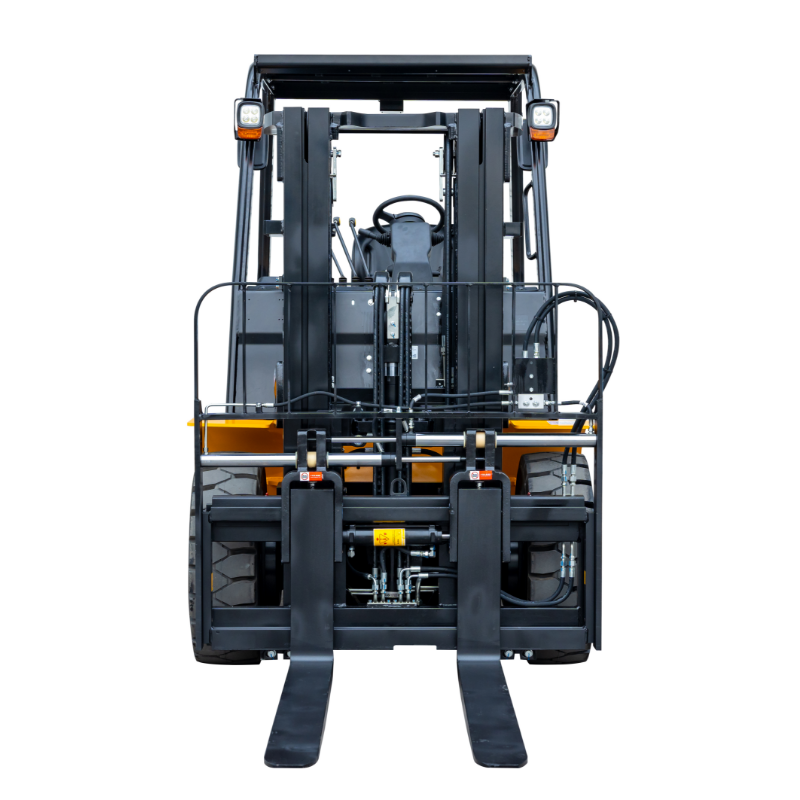

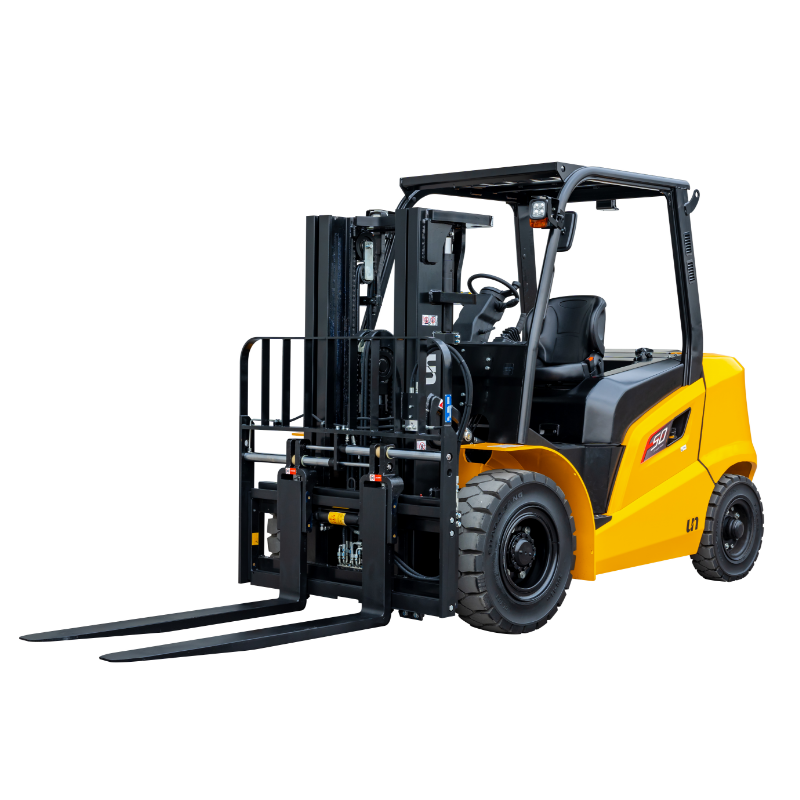

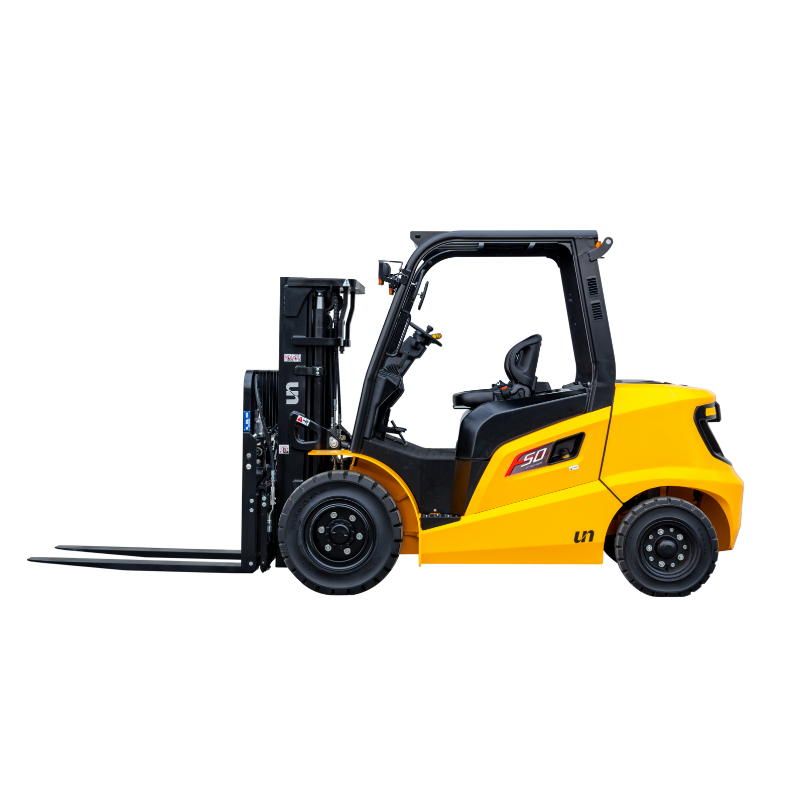

F Series 5.0T Diesel Forklift
Built for demanding material handling, the F Series 5.0T Diesel Forklift delivers the strength and stability required for heavier loads across industrial, manufacturing and yard applications. With a 5.0T lifting capacity and robust diesel performance, it’s a dependable solution for intensive day-to-day handling.
KEY FEATURES
Load-Sensing Steering – Responsive steering for easier, more efficient operation.
Wide-View Mast – Designed to provide better visibility of the load and working area.
Multifunction Display – Provides real-time operating information at a glance.
LED Lighting – Energy-efficient lighting designed for reliable everyday operation.
Operator Comfort – Adjustable steering, enlarged operating space and suspended pedal braking improve comfort and control.
Easy Maintenance – Wide-opening hood and detachable side panels provide convenient access for servicing.
| Specification | Detail |
|---|---|
| GENERAL | |
| Model | FD50T |
| Power Type | Diesel |
| Rated Load Capacity | 5,000 kg |
| Load Centre | 500 mm |
| Engine | Quanchai |
| Tyres | Solid |
| MAST & LOAD HANDLING | |
| Lift Height | 4,200 mm – 3-stage mast |
| Fork Length | 1,200 mm |
| Mast Tilt – Forward / Rear | 6° / 12° |
| Side-Shift | Standard – 3 valve banks |
| DIMENSIONS | |
| Fork Overhang | 571 mm |
| Rear Overhang | 625 mm |
| Ground Clearance – Mast | 160 mm |
| Length to Fork Face | 3,260 mm |
| Overall Width | 1,500 mm |
| Overhead Guard Height | 2,300 mm |
| Turning Radius | 2,900 mm |
| Wheelbase | 2,000 mm |
| PERFORMANCE | |
| Travel Speed – Full Load / No Load | 24 / 25 km/h |
| Lifting Speed – Full Load / No Load | 0.43 / 0.46 m/s |
| Lowering Speed – Full Load / No Load | 0.40 / 0.40 m/s |
| Max. Gradeability – Full Load / No Load | 20 / 25% |
| Total Weight | 6,820 kg |
